The most comfortable square meter at sea

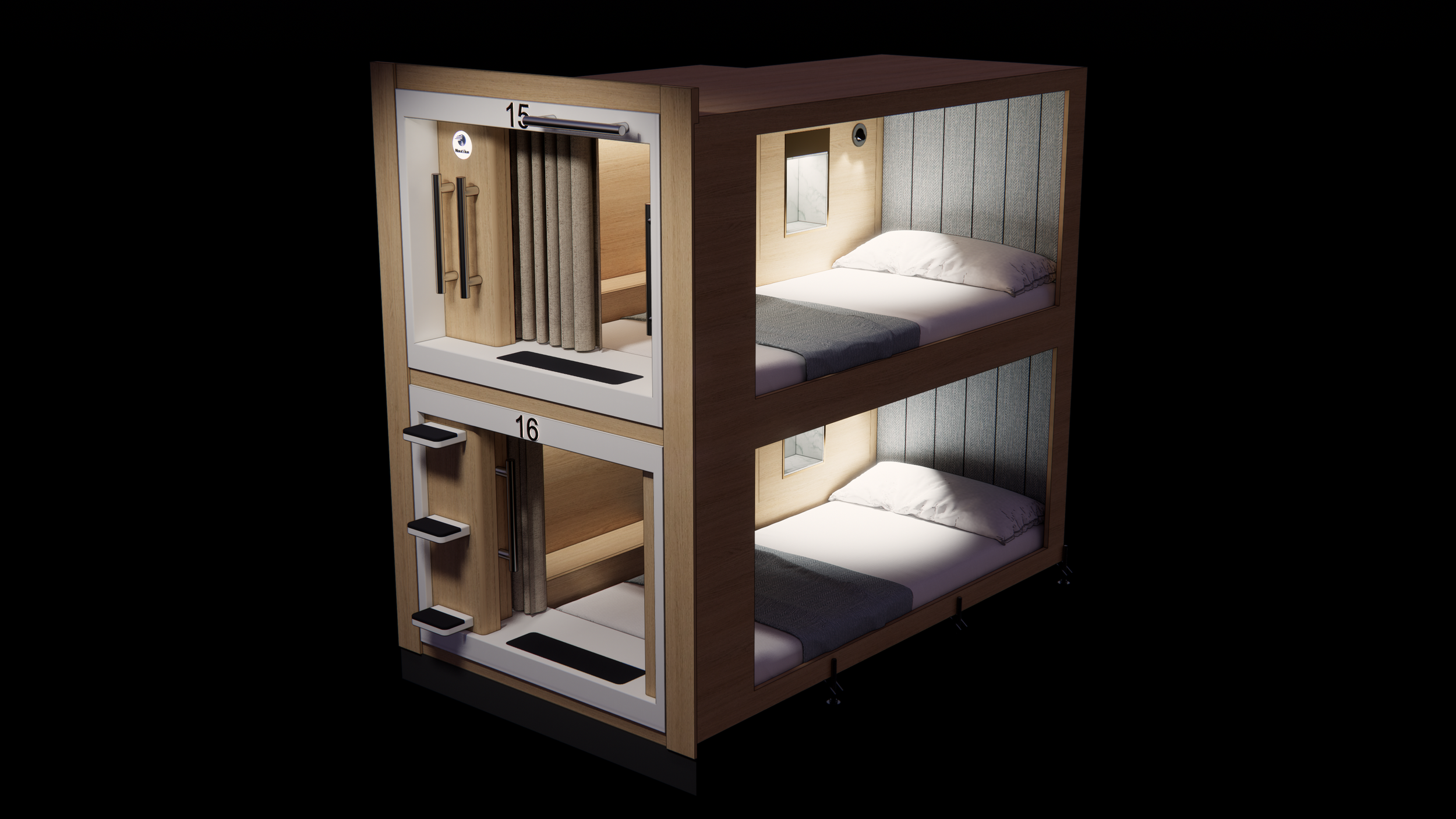

The Nautilus Sleeping Pod is a fully equipped, IMO-certified sleeping module engineered for marine environments — providing privacy, comfort, and effortless installation.

Upside-down view of a compact, two-level sleeping pod or sleeping capsule.

FEATURES & benefits

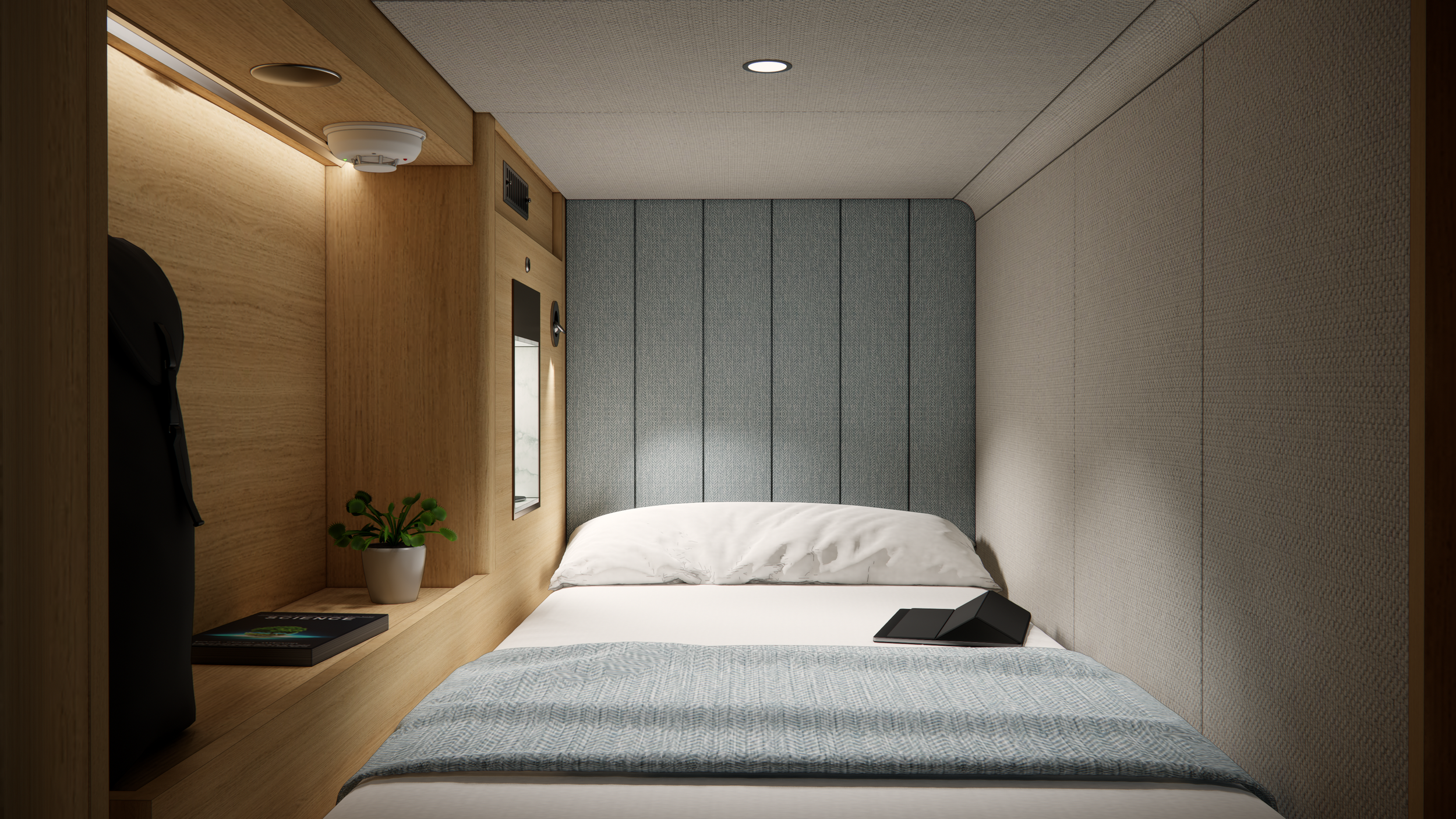

A cozy sleeping pod bed, grey and beige fabric wall panels, a wooden headboard with a built-in shelf, a potted plant, a book, a mirror, and electronic controls, well-lit with ceiling and reading lights.

Sleep without distractions

Sound-absorbing panels and curtain isolates you from surrounding noise, ensuring uninterrupted rest even in busy onboard environments.

A wooden wall with a built-in shelf holding a smartphone, a power outlet, and a control panel, with a small potted plant and a backpack on a nearby surface.

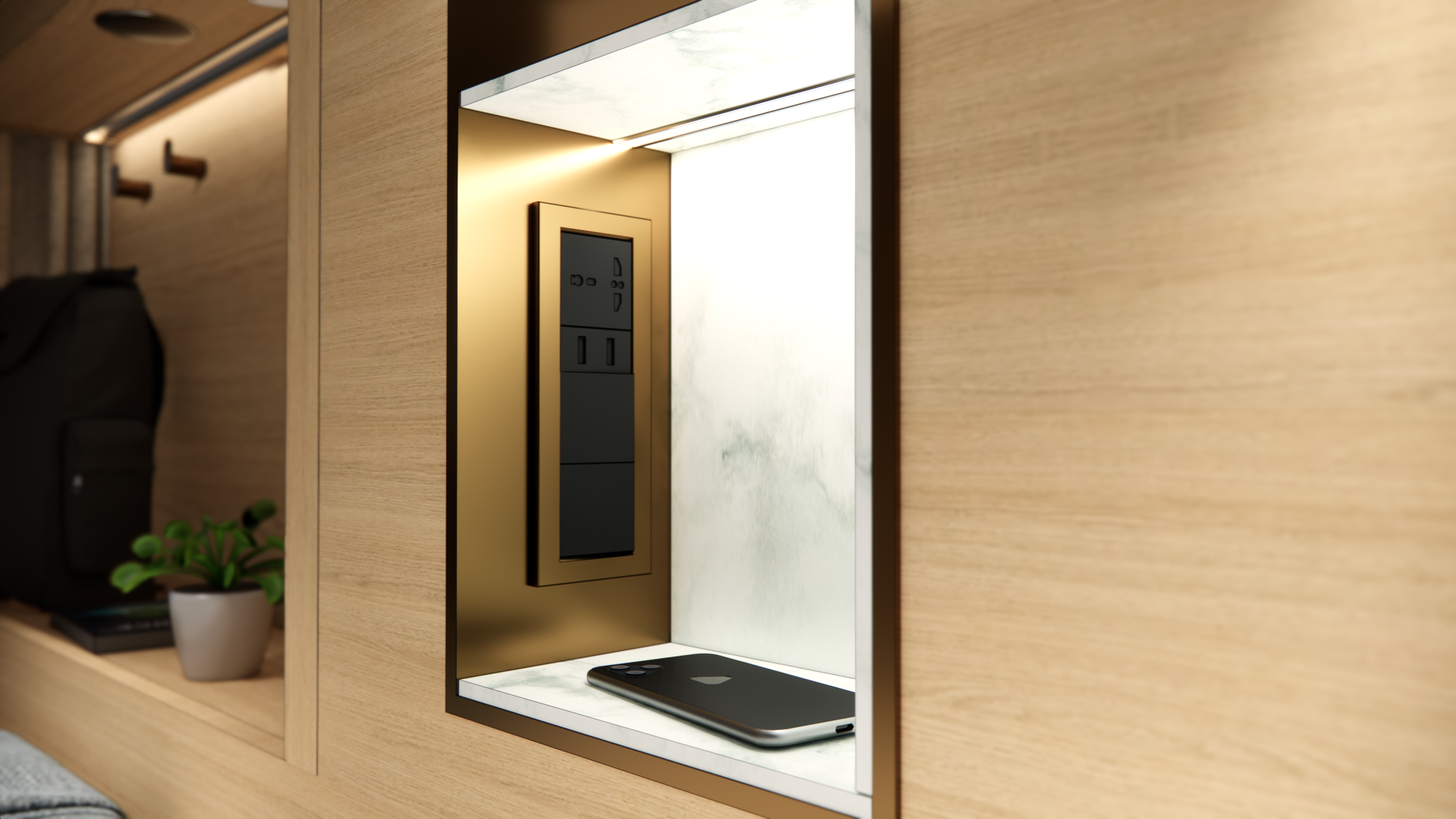

Human-centred lighting

Warm LED lighting in the ceiling and niche, combined with an adjustable reading light, creates a calm and comfortable atmosphere for rest or focus.

Close-up view of furniture adjustable leveling feet with a screw mechanism, supporting a wooden cabinet.

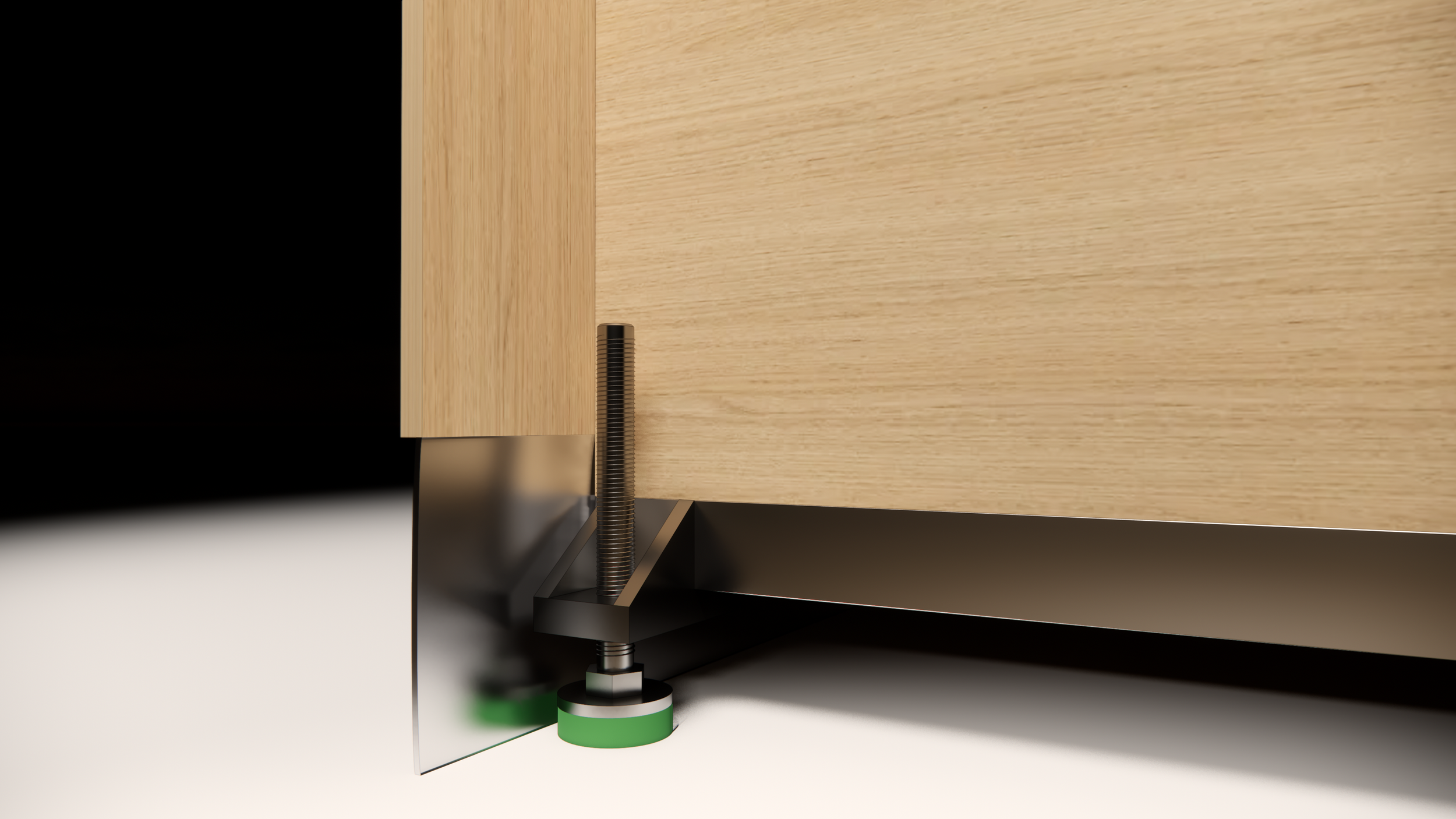

Anti vibration structure

The metal floor frame with Sylomer dampers minimizes vibration transfer, keeping the pod stable and silent under any sea condition.

Hotel room inside a capsule hotel, with bed and wood paneling, viewed through a small window between capsules, with room number 15 displayed above.

Tailored design

Pod finishes, colors, and branding elements can be customized to reflect your corporate identity or vessel aesthetic.

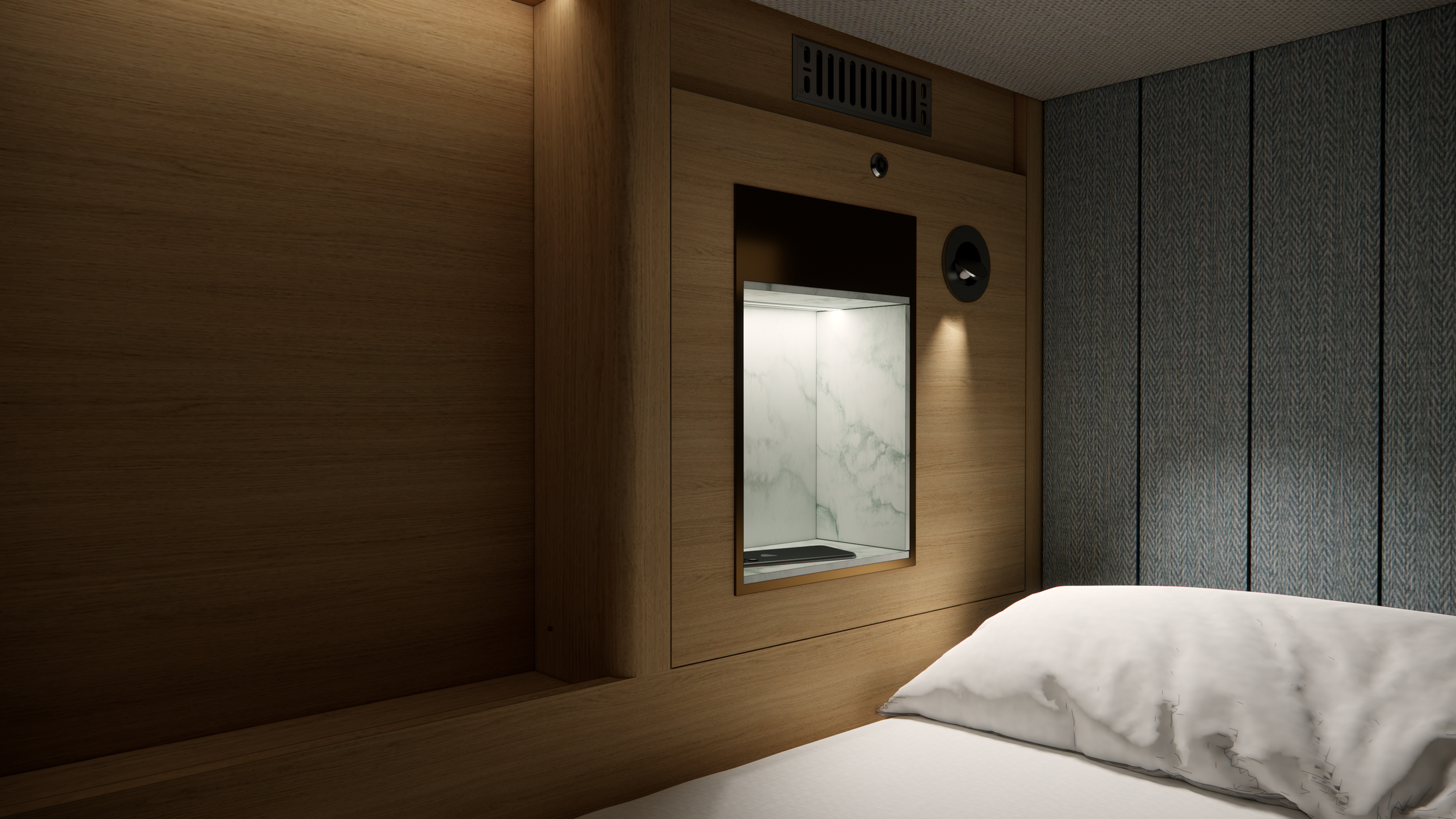

Modern sleeping pod with wooden paneling, a bed with white sheets and pillow, a textured wall behind and to the right, and a built-in feature with marble interior and lighting.

Fresh air circulation

Gentle airflow maintains fresh, clean air and consistent comfort throughout the pod.

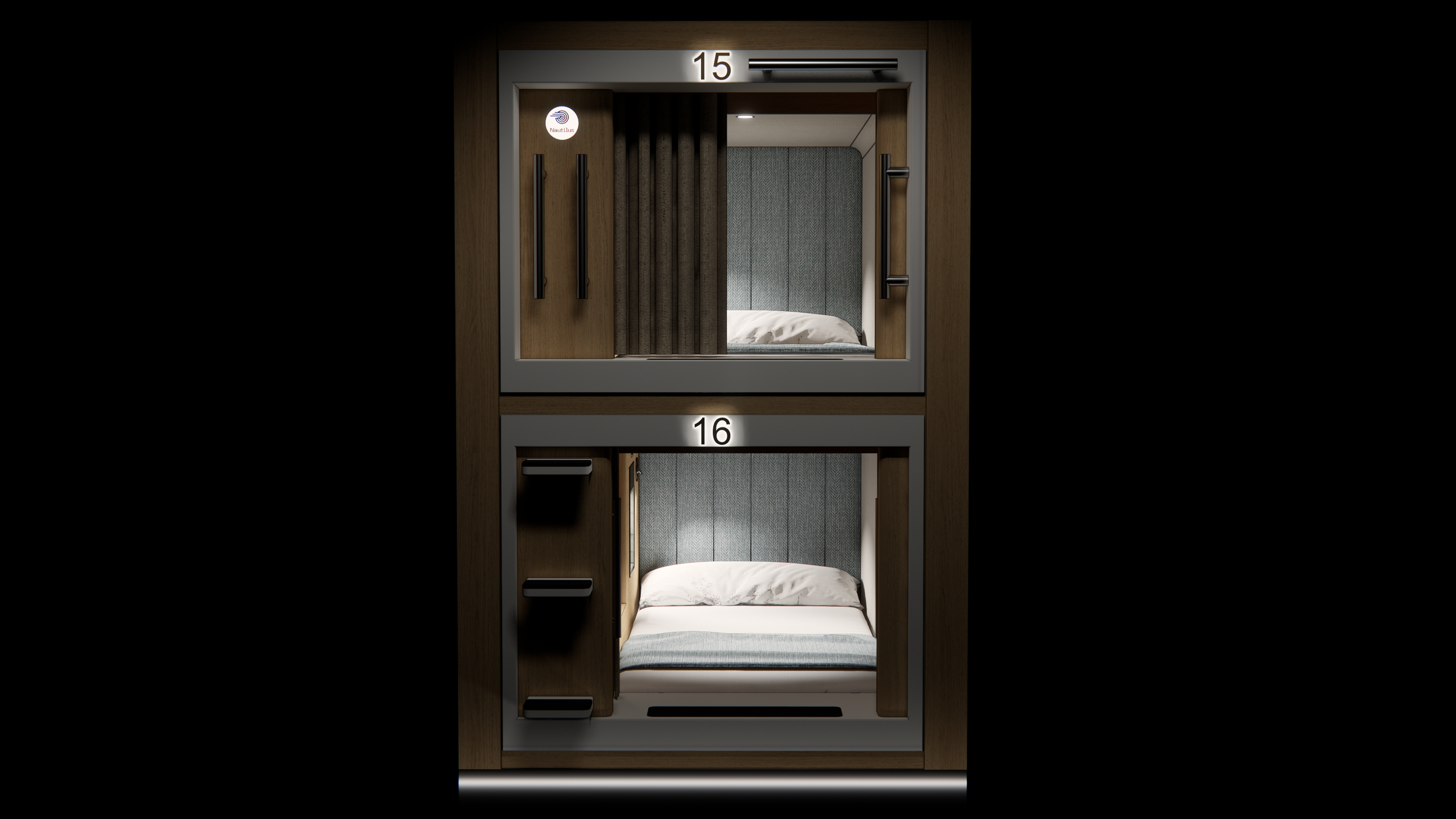

A futuristic capsule hotel layout with two levels, each featuring a bed with a headboard and side lights, separated by a partition, with numbers 15 and 16 indicating the levels.

Compact luxury

Smart ergonomics and refined finishes deliver a full-scale cabin experience within minimal external dimensions.

SEAMLESS INTEGRATION

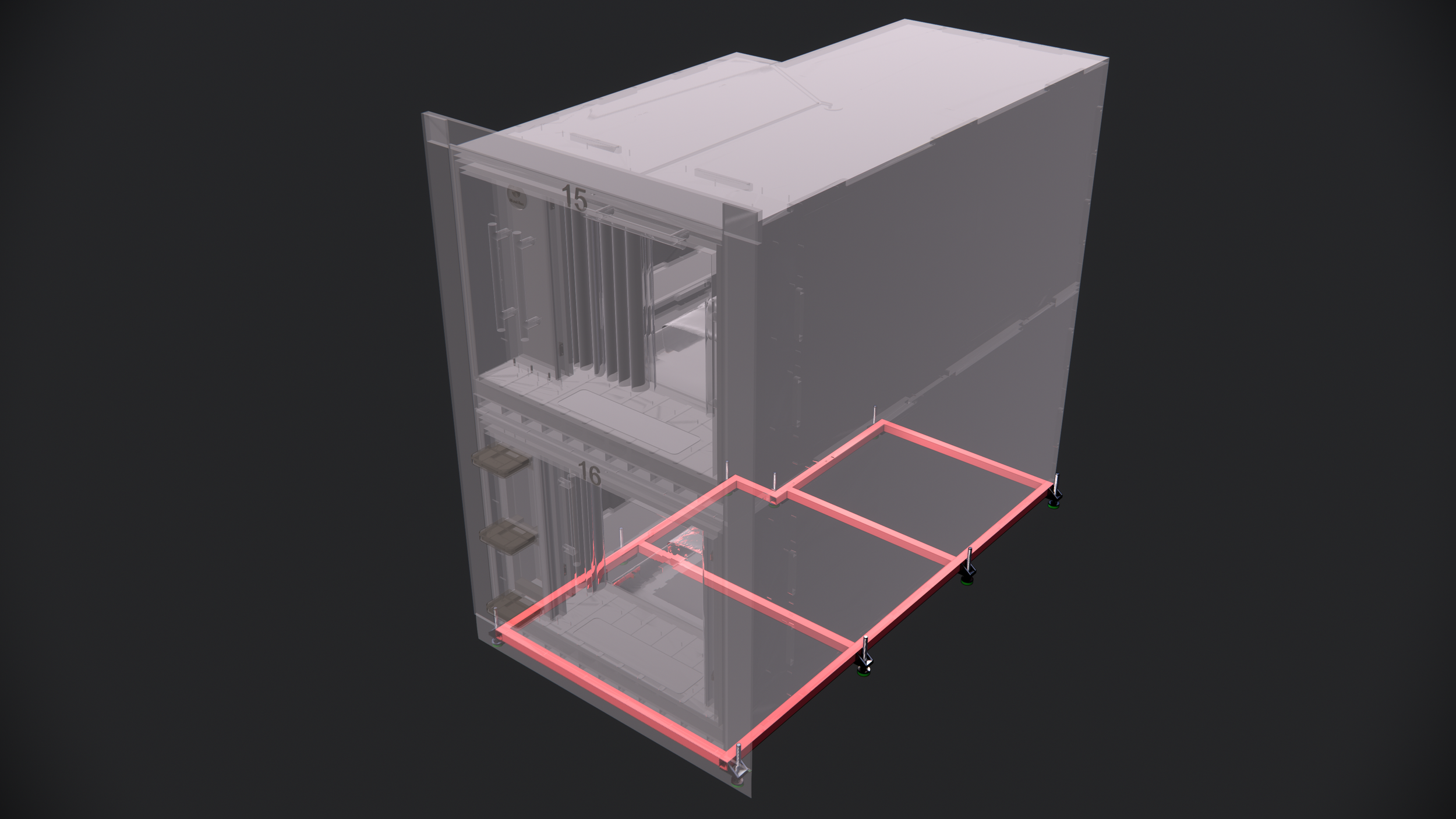

The Nautilus Pod is engineered for quick, clean installation without the need for structural modifications. A dedicated technical corner houses plug-and-play connections for HVAC, electricity, and sprinkler systems, allowing straightforward integration into existing ship networks. The adjustable metal base frame ensures perfect leveling and vibration isolation, while the pod’s compact height—below 2 m—eliminates the need to open or modify the vessel ceiling. Together, these features provide a precise, time-efficient installation process with minimal onboard disruption.

A digital rendering of a transparent storage or server unit with illuminated pink borders on the bottom platform and numbered sections inside.

imo / med certification

The Nautilus Pod is designed and built to meet the highest safety standards of the maritime industry. For every project, IMO and MED certifications are issued through recognized regulatory bodies such as Lloyd’s Register or Bureau Veritas. Its construction features a non-combustible core and IMO-certified surface materials, ensuring full compliance with fire protection and onboard safety requirements. All components, from structural elements to electrical and ventilation fittings, are carefully selected to guarantee long-term reliability in demanding marine conditions.

IMO certificate / wheelmark

INSTALLATION Options

The Nautilus Pod is available as a front entry or side entry version. Both can be equipped to the same level while offering different installation options.

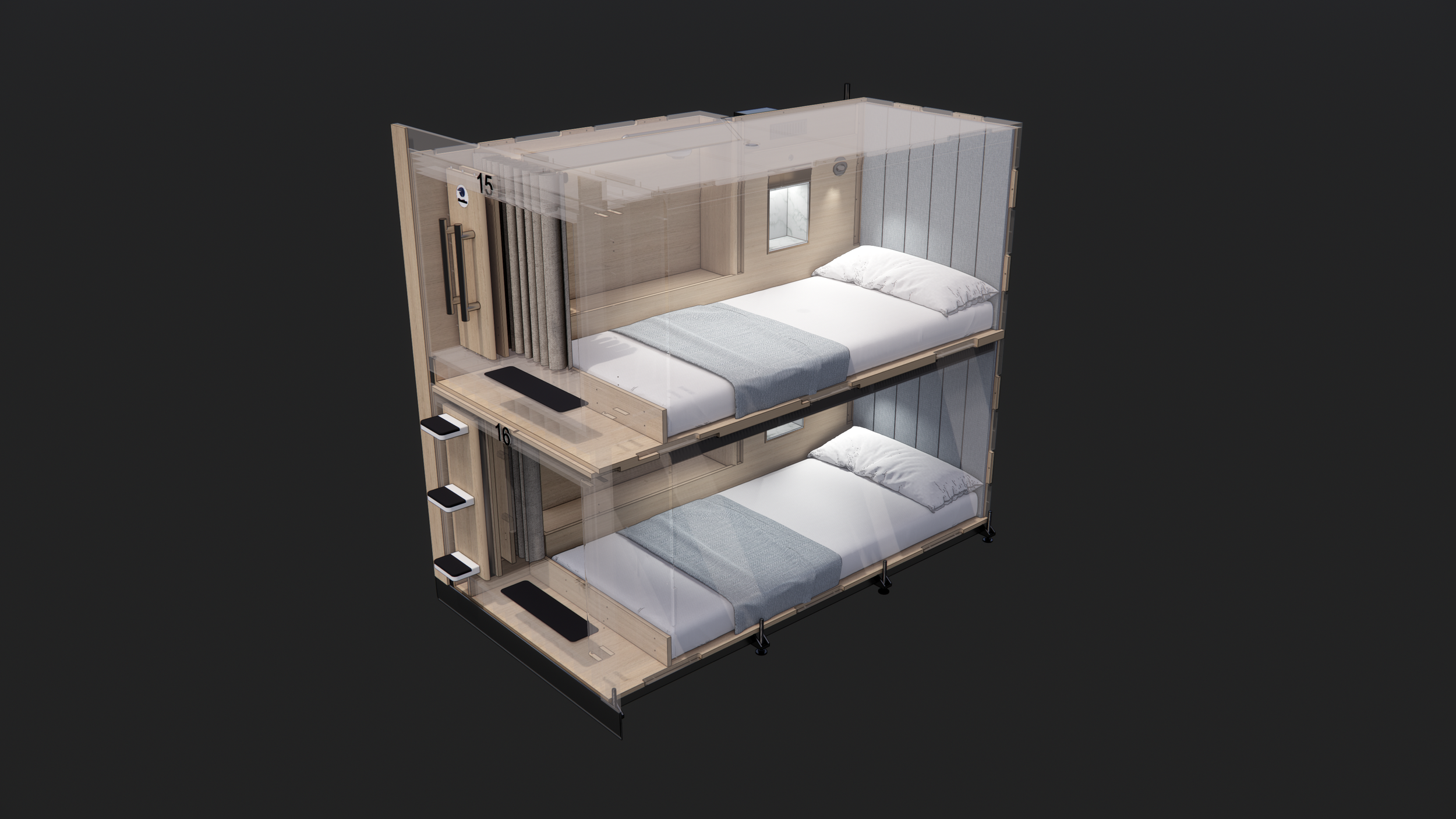

A digital cutaway rendering of a two-story modern tiny home with beds on both floors, small windows, and interior furnishings.

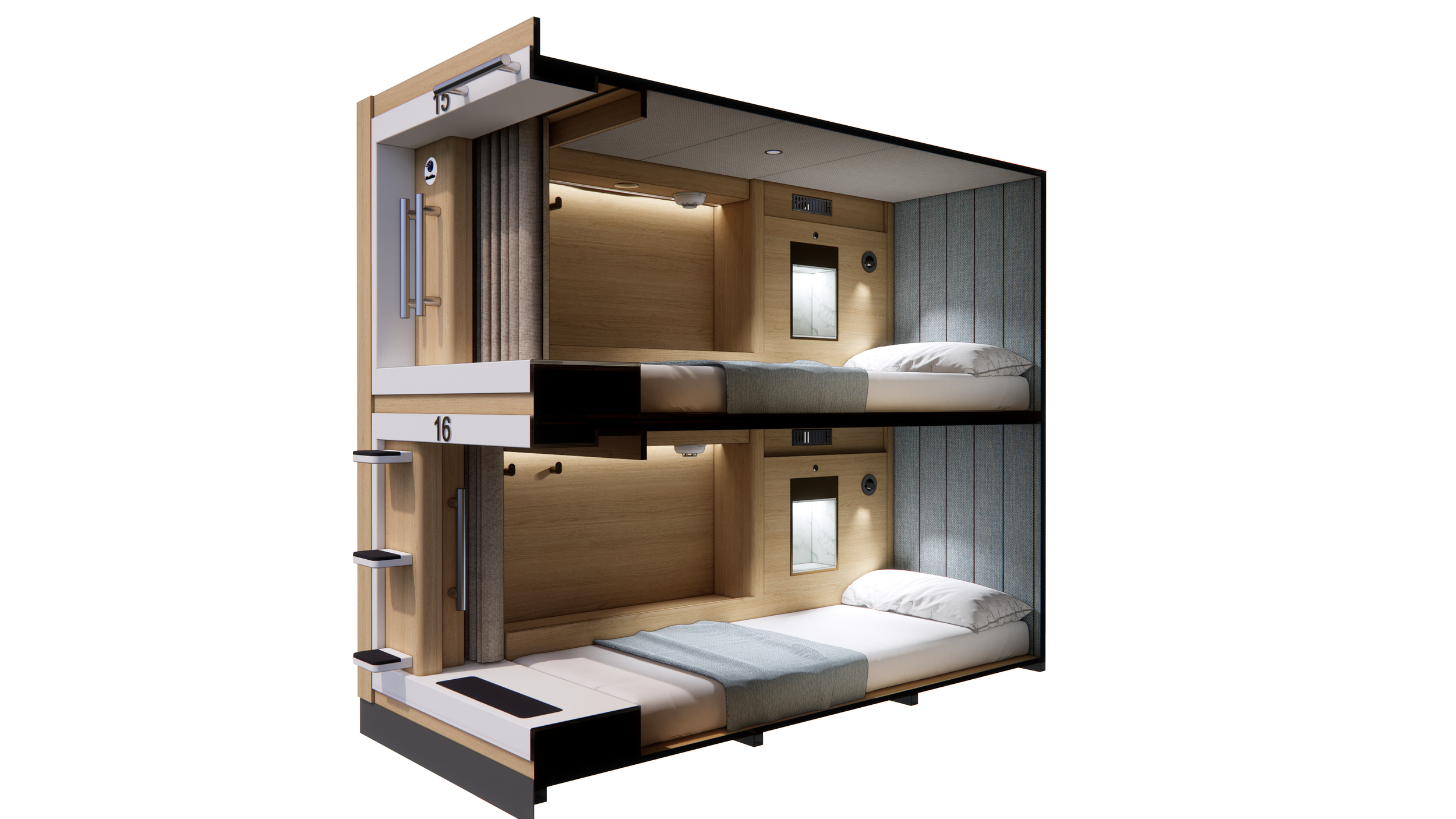

FRONT ENTRANCE

Cross-section of a two-story wooden bunk bed with enclosed glass walls, showing beds on both levels with pillows and blankets.

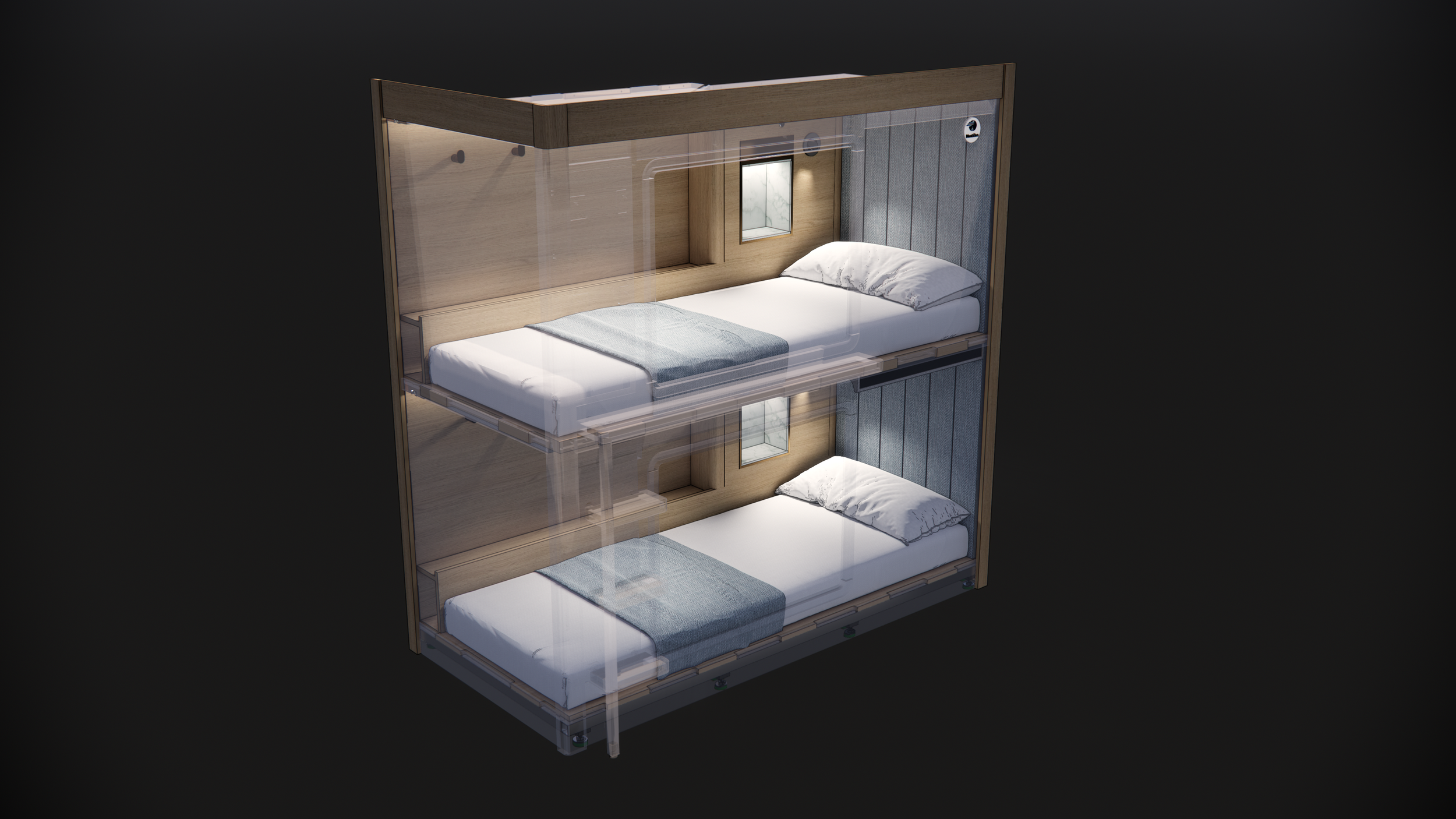

SIDE ENTRANCE

Row of numbered pet kennels with glass doors, some kennels show interior spaces with beds and curtains.

FRONT ENTRANCE STACKED

A modern capsule hotel with individual sleeping pods labeled 15, 16, 17, and 18, featuring interior lighting, window views, and a ladder on the side of the lower right pod.

SIDE ENTRANCE STACKED

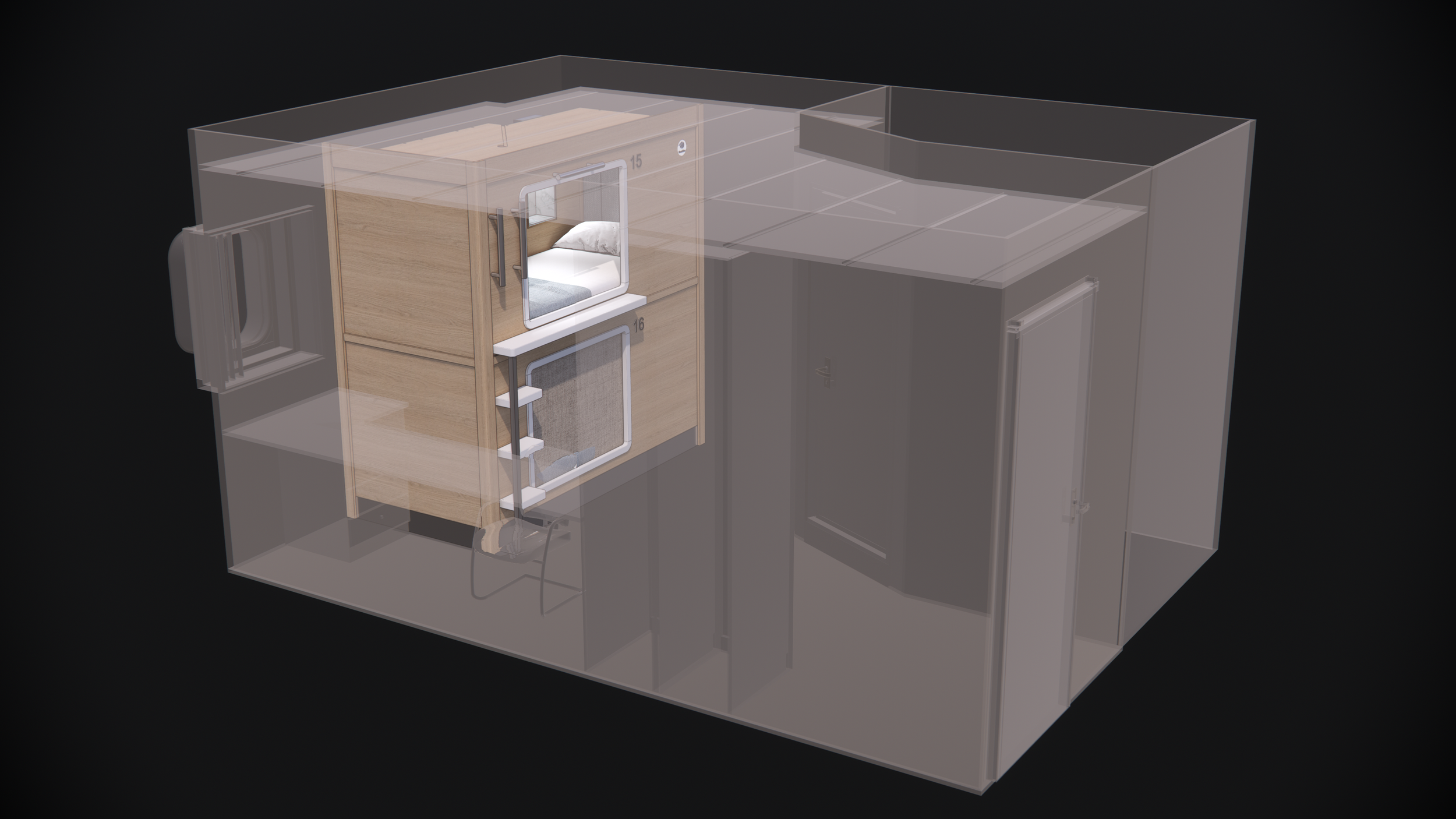

STANDALONE UNIT FOR CABIN INSTALLATION

3D rendering of a compact living space with bunk beds, a chair, a small desk, and a storage cabinet, all inside a transparent enclosure.

OPTIONS & FINISHES

Elements marked with * are optional and can be added to or omitted from the standard configuration.

Cross-section view of a double-decker sleeping pod with two beds, one on top of the other, in a modern, compact design with wood and fabric interior.

    • Standard panel

    • Fire retartand

    • Non combustable

    • HPL finish

    • Upholstery panels

    • Padded headboard

    • Frame: NCS/RAL painted metal

    • Insert: Corian or Kerrock

    • Multistandard socket, USB-C, light switch

    • Non slip Corian or Kerrock

    • Sound absorbing fabric

    • Reading Light

    • Dimmable LED

    • *Chronotype-based LED solution

    • *Illuminated Pod number

    • Handles

    • Coat hooks

    • *Safe for valuables

    • *Sprinkler

    • *Smoke Detector

    • *Custom logo

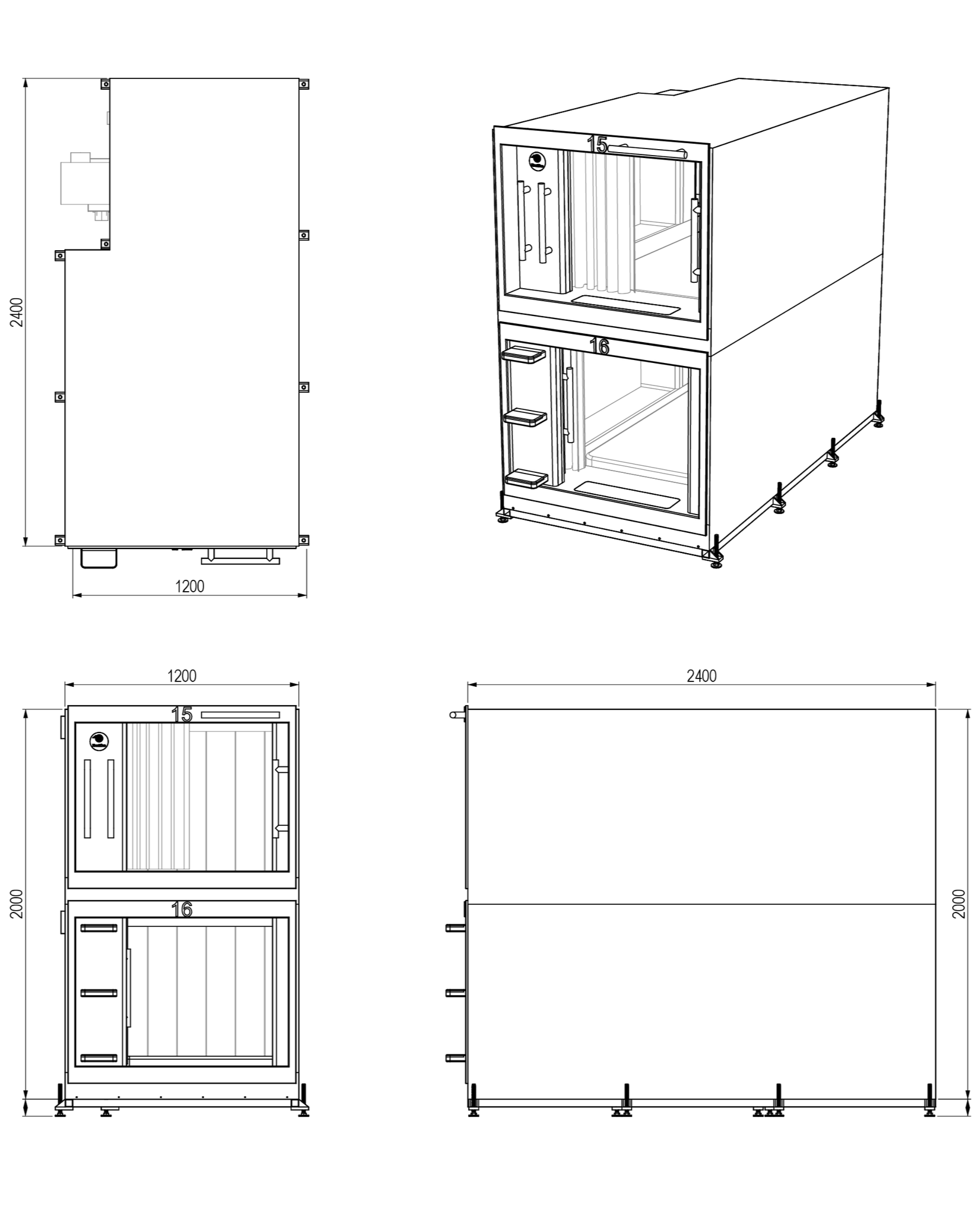

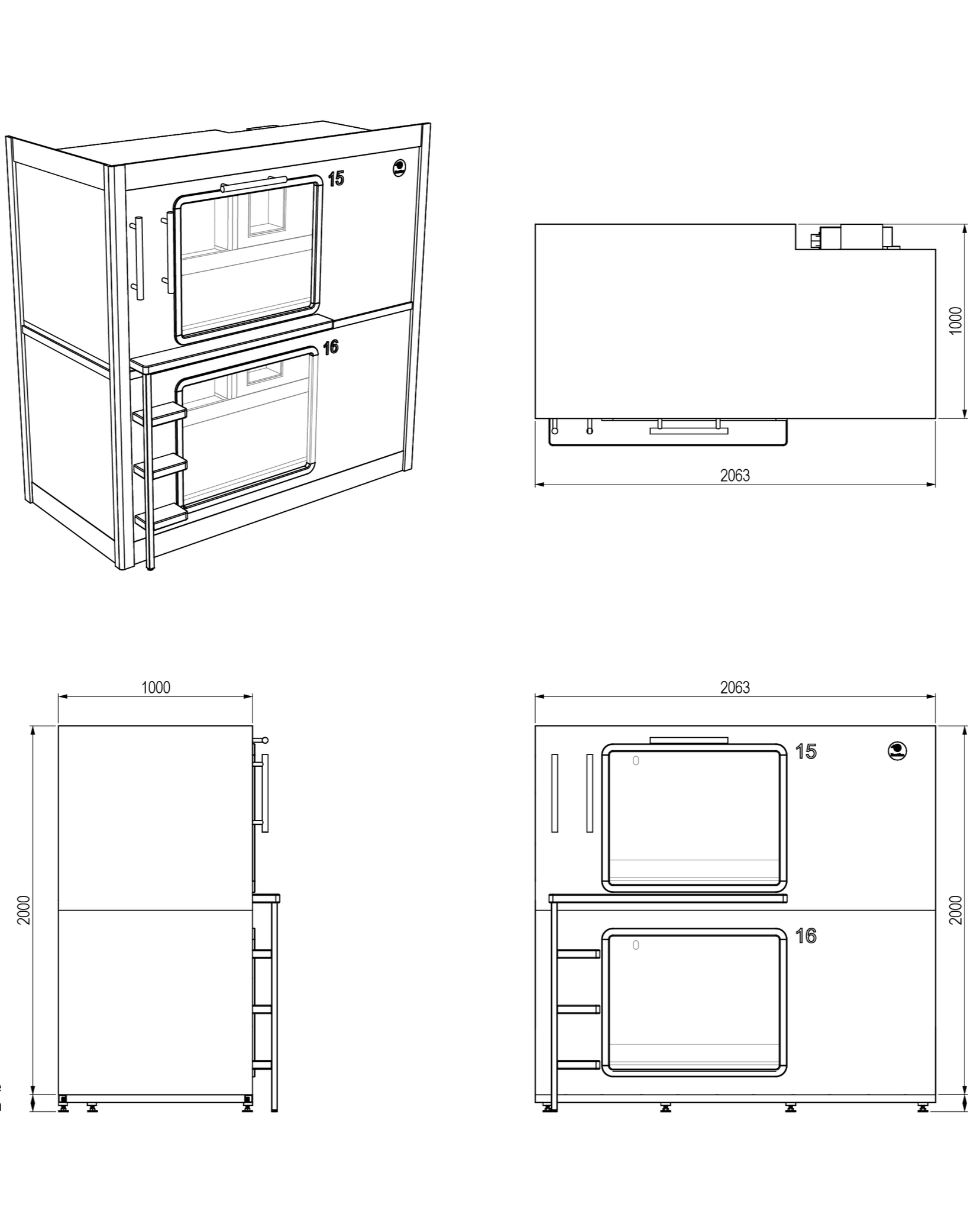

Technical Specifications

The minimum installation height required is 2000 mm. The layout dimensions of the Pod vary depending on the entrance type and the mattress size. Our standard configurations use 800 mm or 900 mm wide mattresses, but other dimensions can be provided according to customer requirements.

Request Technical Documentation
Technical drawings of a two-door refrigerated display case with dimensions and detailed views.
Technical drawing of a kitchen appliance, possibly an oven or microwave cabinet, with top and bottom sections, dimensions, and details.

 More about Nautilus Pod

  • All components are flat-packed on pallets for efficient transport. The largest panel measures 235 × 110 cm.
    If the onboard area provides enough space for maneuvering pre-assembled units, we can deliver pods pre-assembled, allowing for faster installation.

  • In standard conditions, two installers can assemble up to six pods per day. The system is designed to be straightforward and modular, reducing onboard disruption.

  • Yes. Each pod is placed on a steel substructure that can be easily leveled and securely attached to the floor or deck.
    We offer multiple fixing options, depending on your vessel or facility requirements.

  • The standard Nautilus pod fits spaces with a ceiling height between 200 cm and 212 cm, thanks to its adaptive base and upper finishing elements.
    For rooms outside this range, we can provide custom finishing elements to neatly close gaps between the pod and surrounding walls or ceilings.

  • Changing bedsheets is just as easy as with a standard bunk bed.
    For cleaning or maintenance, the mattress and mattress topper can be removed quickly, providing easy access to all surfaces inside the pod.

  • The Nautilus pod entrance is closed with either a roller blind or a curtain. A locking option for the roller blind is available; however, its use must be reviewed case by case to ensure compliance with relevant safety and maritime regulations.
    For secure storage of personal items, an optional built-in safe can be added to each pod.
